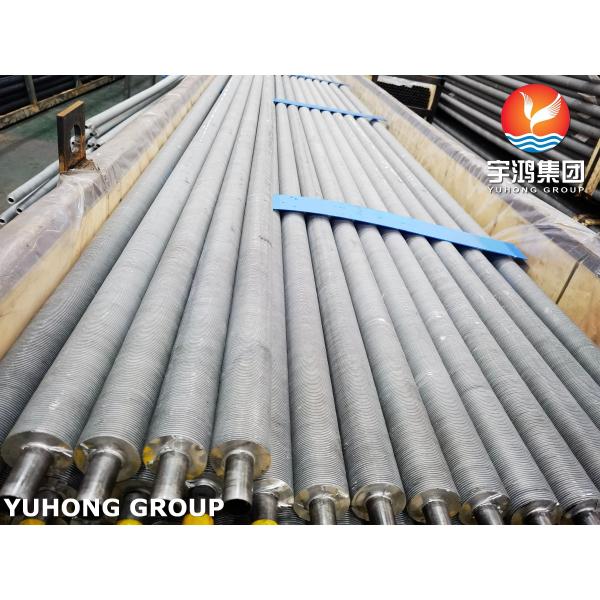

ASTM A179 Low-Carbon Steel Extruded Fin Tube For Air Cooled Heat Exchanger

Brand Name : YuHong

Model Number : ASTM 179

Certification : ISO, ABS, BV, ISO, ASTM, SGS

Place of Origin : China

MOQ : 200~500 KGS

Price : Negotiable

Payment Terms : T/T,L/C AT SIGHT

Supply Ability : According to Clients' requirements

Delivery Time : 35-60 Days (Depend on Customer's Requirements)

Packaging Details : Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps

Product Name : Extruded Finned Tube

Base Tube Specification&Material : ASTM A179

Fin material : ASTM B221 AL-1060

Fin Height : ＜17mm

Fin Thickness : 0.2~0.4mm

Base Tube OD : 8~51mm

Fin Pitch : 1.6~10mm

Application : Heat exchangers for power plants, Steam condensate systems...

Contact Now

Extruded Finned Tube ASTM A179 With AL1060 Fins For Heat Exchanger
Product Specifications
Attribute Value
Product Name Extruded Finned Tube
Base Tube Specification & Material ASTM A179
Fin material ASTM B221 AL-1060
Fin Height <17mm
Fin Thickness 0.2~0.4mm
Base Tube OD 8~51mm
Fin Pitch 1.6~10mm
Application Heat exchangers for power plants, Steam condensate systems
Product Overview

An extruded finned tube is a high-performance heat exchanger component with fins mechanically extruded from the tube wall. This process creates a strong metallurgical bond between the fins and tube, resulting in superior heat transfer characteristics.

Key Advantages
  • Enhanced heat transfer: AL1060 aluminum fins provide excellent thermal conductivity
  • Durable construction: Metallurgical bond ensures structural integrity under high temperatures
  • Corrosion resistant: Aluminum fins offer protection in demanding environments
  • Space efficient: Compact design maximizes surface area in limited spaces
ASTM A179 Material Properties

Chemical Composition: Low carbon steel (0.06-0.18% C) with excellent weldability and formability

Mechanical Properties: Minimum tensile strength of 325 MPa and yield strength of 180 MPa

Industrial Applications
  • Air-cooled heat exchangers in power generation and petrochemical plants
  • Oil and hydraulic coolers for industrial machinery
  • Gas-to-gas heat exchangers in waste heat recovery systems
  • Evaporators and condensers in refrigeration applications
  • Process heat exchangers in chemical processing and oil refining
ASTM A179 Low-Carbon Steel Extruded Fin Tube For Air Cooled Heat Exchanger

Product Tags:

A179 Extruded Fin Tube



ODM Extruded Fin Tube



ODM crimped fin tube


Cheap ASTM A179 Low-Carbon Steel Extruded Fin Tube For Air Cooled Heat Exchanger for sale

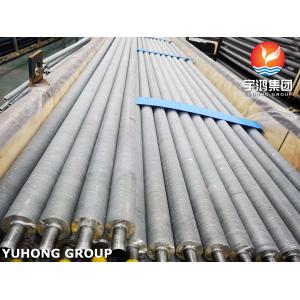

ASTM A179 Low-Carbon Steel Extruded Fin Tube For Air Cooled Heat Exchanger Images
